MAKING A CAMCORDER DSA

Suitable cams for use as nv, with specs here too. Wiring help for cam viewfinders.
Charlie
Posts: 10
Joined: 08 Jan 2012, 22:15
Location: Norton

Re: MAKING A CAMCORDER DSA

Post by Charlie » 16 Jan 2012, 16:06

I have a miners lamp that I use for lamping would that be okay to put a IR filter on. Would it work with a camcorder in night vision . charlie

Craggrat
Posts: 107
Joined: 11 Nov 2011, 20:59
Location: Doncaster

Re: MAKING A CAMCORDER DSA

Post by Craggrat » 16 Jan 2012, 17:59

It's finally set the epoxy resin gone hard. Should've used more hardner. The DSA I'm making is for another Sony camera I bought it's a HDR-HC7E.

Looks a bit of a bodge but a bit of leccy tape works wonders.

Thanks azz for the info on the clips
Cheers kevin

azz
Posts: 68
Joined: 16 Oct 2011, 18:41
Location: sheffield

Re: MAKING A CAMCORDER DSA

Post by azz » 16 Jan 2012, 18:30

looking good that kevin and the new camcorder you got will work great it's the same spec as the one i use.
atb mark

Craggrat
Posts: 107
Joined: 11 Nov 2011, 20:59
Location: Doncaster

Re: MAKING A CAMCORDER DSA

Post by Craggrat » 18 Jan 2012, 07:42

Thanks Mark.
Yes it's a lot higher spec than my other.
All setup now, hoping to get some rat shooting in a piggery next weekend.
Cheers kevin

azz
Posts: 68
Joined: 16 Oct 2011, 18:41
Location: sheffield

Re: MAKING A CAMCORDER DSA

Post by azz » 18 Jan 2012, 11:23

Charlie wrote:I have a miners lamp that I use for lamping would that be okay to put a IR filter on. Would it work with a camcorder in night vision . charlie
yes probably would work but it depends on the lamps performance and the camcorder spec to how good it will be.
atb mark

Craggrat
Posts: 107
Joined: 11 Nov 2011, 20:59
Location: Doncaster

Re: MAKING A CAMCORDER DSA

Post by Craggrat » 18 Jan 2012, 16:20

Charlie
I've got a piece of IR Perspex if you want to try it out. Your only 20 min away from me, pm me and I'll give you my details.
Cheers kevin

ratter
Posts: 76
Joined: 31 Dec 2011, 20:22
Location: S.Wales (Merthyr Tydfil)

Re: MAKING A CAMCORDER DSA

Post by ratter » 18 Jan 2012, 20:56

Hi Azz

I know you have seen the way I mounted mine but it is so simple and looks good as well (well I think So),no need for any jubilee clips as the rubber of the inner tube holds it all in place.

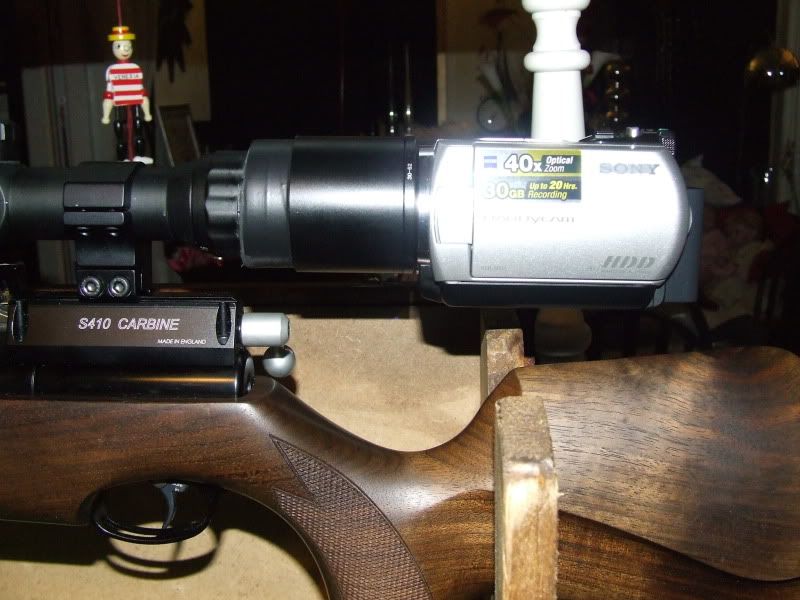

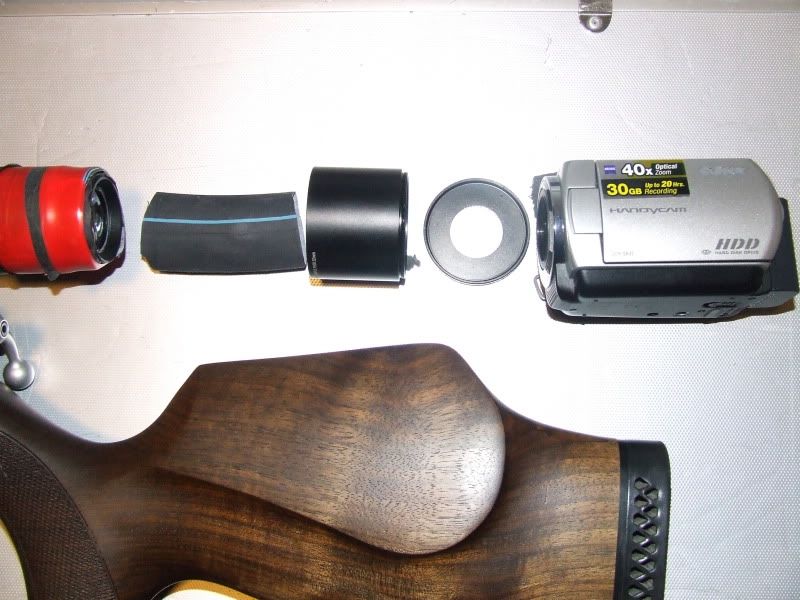

Sony DCR-SR32E fixed to SWAT Scope.

Step up ring 30mm - 52mm £3.90 from http://www.ebay.co.uk/itm/300628615395? ... 1497.l2649
Camera Lens Adapter Tube 52mm £5.97 From http://www.ebay.co.uk/itm/250475822818? ... 1497.l2649
Pieces Of Rubber Cycle Inner Tube Free (had some in my shed
Insulation tape,any colour under the tube all I had was red :) .




azz
Posts: 68
Joined: 16 Oct 2011, 18:41
Location: sheffield

Re: MAKING A CAMCORDER DSA

Post by azz » 18 Jan 2012, 22:22

hi tony
thats another great way of mounting the camcorder and looks very neat i'm sure it will help other lads wanting to make a DSA
cheers for adding this.
atb mark

ratter
Posts: 76
Joined: 31 Dec 2011, 20:22
Location: S.Wales (Merthyr Tydfil)

Re: MAKING A CAMCORDER DSA

Post by ratter » 18 Jan 2012, 22:41

Thanks Azz

If if wasn't for people who are willing to share their ideas on this and other sites I wouldn't have had a clue where to get started.

Silent Shooter
FOUNDER
Posts: 1482
Joined: 14 Oct 2011, 10:30
Location: Reading, Berkshire

Re: MAKING A CAMCORDER DSA

Post by Silent Shooter » 18 Jan 2012, 22:45

ratter wrote:Thanks Azz

If if wasn't for people who are willing to share their ideas on this and other sites I wouldn't have had a clue where to get started.
AMEN to that and thanks to you all for shareing your ideas and vids :D

Geoff
