PaulHam's 3D Printed In-Line Add-on

Post by paulham » 26 Mar 2016, 00:02

Hi all,

Longtime no speak!

I am probably well out of the loop nowadays, I have been popping back every once and a while to have a little nose around but I’ve hardly contributed.

This post is going to show you an inline addon I designed in November 2014 after getting inspiration from 22-250Jock’s inline addon he shared in February 2014. In May 2014 he upgraded his design using extruded aluminum unibox/unicase from LincolnBinns, so I decided to give it a go using my 3D printer.


Check out 22-250jock’s original design (& his version 2 on page 16) -

Preliminary Tests
These were my first tests using a low resolution near eye display from a hacked apart ‘spy-car’ toy.

Strapped to a Watec


Then strapped to a flo-plast e700 DSA




The idea to use a mirror


Awful bulky design





Parts Required
Pulsar DSA
KPC-e700
M12 Lens (cant find the link)
VF-2C
Mirror (from telescope)
Rocker Switch
Battery
Potentiometer 2.2k
Screws (No.6 x 5/8",25)
Set of 3d printed parts


3D View


3D Printed Parts
Here you will find the STL files (common 3D printing object files)

3D Printing STL’s


The build



A few stringy bits on the inside of the print due to my printer calibration, but these can be removed with a sharp knife or just left alone.


The VF-2c has a SMD momentary push button to turn on the device, you will need to bypass this switch, I used some cable from eBay called ‘KYNAR WIRE‘ as it is very thin (but any wire will do).

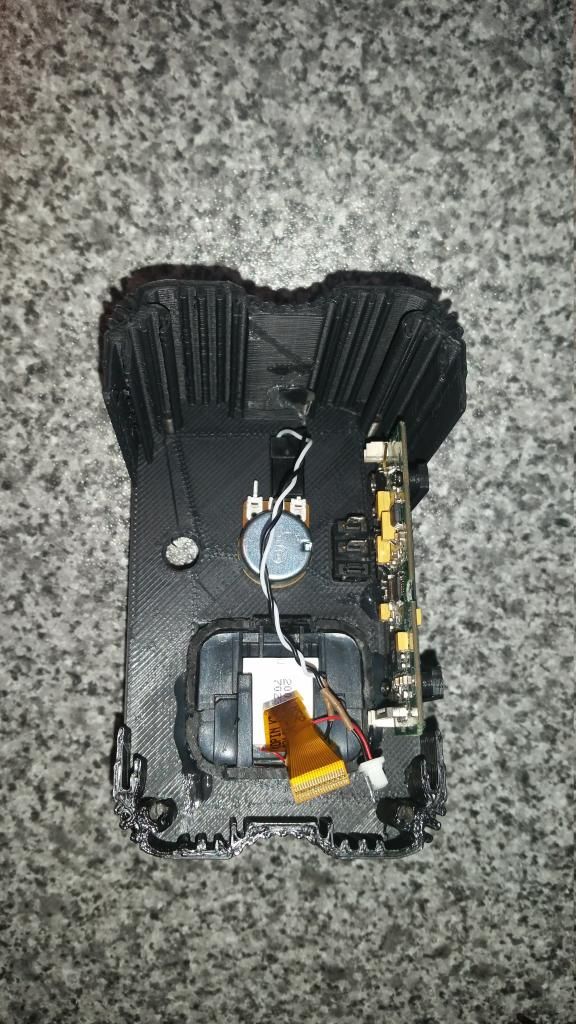

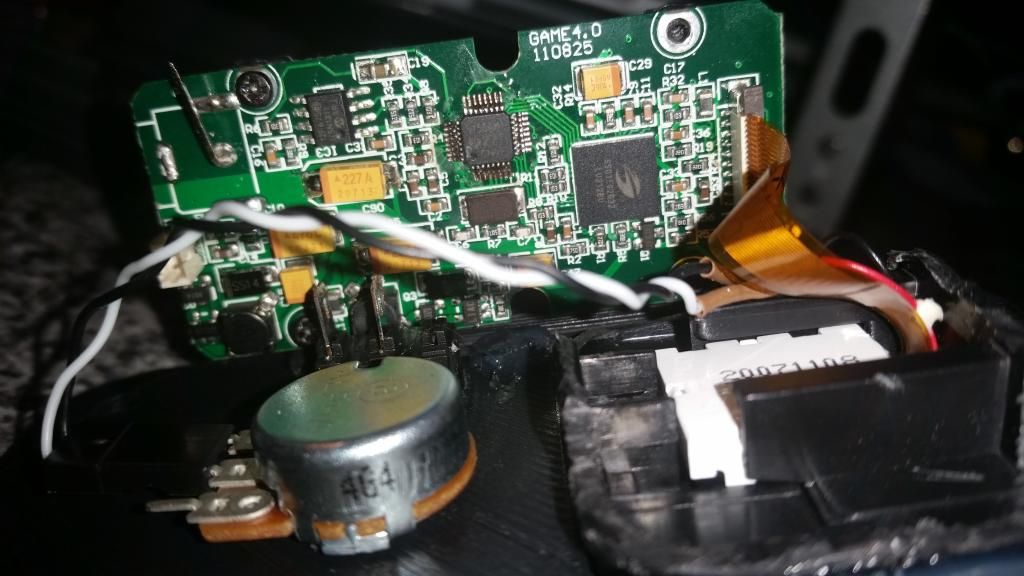

Mount for VF-2c controller board.

Phono connector removed




Side panel can be removed to give access to the brightness and contrast buttons to fine tune in the field tests.



I had to print a couple of spacers to angle the camera a bit further back to get the reticle in the middle, I found that this was trial and error to get it good.


Toy’d with the idea of wireless charging.


Front plate was designed a little too small, hence the unaligned bottom plate.

Main power switch, LCD brightness control & Battery charging connector.


Top

Bottom

I didn’t put a video out connector on to this design, so I don’t have any DVR footage to show, but I can say that it works very well and doesn’t disrupt your shooting position too much. I use this kit with a T20 every time I go out with the .223

Many details I have probably missed out, but if there are any questions please feel free to ask and it should trigger my memory.

Cheers
Paul
Last edited by paulham on 26 Mar 2016, 11:40, edited 1 time in total.
