Watec board camera settings ?

Post by marcos58 » 05 Mar 2013, 11:47

Hi All,

Nearly finished my add on using the watec board camera from the cheap watec group buy and was just
wondering about the settings ? I have had a quick look at previous posts and it seems shutter on and gain
low are the way to go. I assume the Switch vr6 is the manuel gain but what are the other 3 switches;
Sw4 Agc/Mgc, high low modes, Sw3 Gamma/Agc Mgc on or off ????
Help and advise with the settings would be very very welcome please !

Marcos.

User avatar
paulham
Posts: 1192
Joined: 09 May 2012, 12:35
Location: Potters Bar, Hertfordshire

Re: Watec board camera settings ?

Post by paulham » 05 Mar 2013, 15:11

marcos58 wrote:Hi All,

Nearly finished my add on using the watec board camera from the cheap watec group buy and was just
wondering about the settings ? I have had a quick look at previous posts and it seems shutter on and gain
low are the way to go. I assume the Switch vr6 is the manuel gain but what are the other 3 switches;
Sw4 Agc/Mgc, high low modes, Sw3 Gamma/Agc Mgc on or off ????
Help and advise with the settings would be very very welcome please !

Marcos.
When I done this I sat there with the illuminator on and flicked the switches and turned the pot till I got the best picture at the best distance and left it at that.

If I remember I will check when I get home and post it up.

Cheers
Paul
Last edited by paulham on 05 Mar 2013, 16:52, edited 1 time in total.

marcos58
Posts: 278
Joined: 25 Aug 2012, 03:33
Location: Manchester, ( by the sea, I wish lol) Lancashire

Re: Watec board camera settings ?

Post by marcos58 » 05 Mar 2013, 15:36

Thanks Paulham , that was going to be the route I was
going to try but posting your settings will be a great help
to get me out into the field quicker !

Marcos.

alriro
Posts: 11
Joined: 21 Jan 2013, 00:31
Location: Madrid-Spain

Re: Watec board camera settings ?

Post by alriro » 05 Mar 2013, 17:11

Just wondering if anyone has one watec left from the group buy.
Many thanks in advance, Alvaro

User avatar
sunndog
ADMINISTRATOR
Posts: 6514
Joined: 10 Jun 2012, 17:51
Location: buxton, derbyshire

Re: Watec board camera settings ?

Post by sunndog » 05 Mar 2013, 17:52

paulham wrote: When I done this I sat there with the illuminator on and flicked the switches and turned the pot till I got the best picture at the best distance and left it at that.

as punch always say's "thats the way to do it" lol
press this, turn that, try them.....
when asking for advice, please include what n.v device and/or illumination you already have (if any) and what rifles you intend to use them on...cheers

User avatar
paulham
Posts: 1192
Joined: 09 May 2012, 12:35
Location: Potters Bar, Hertfordshire

Re: Watec board camera settings ?

Post by paulham » 06 Mar 2013, 20:30

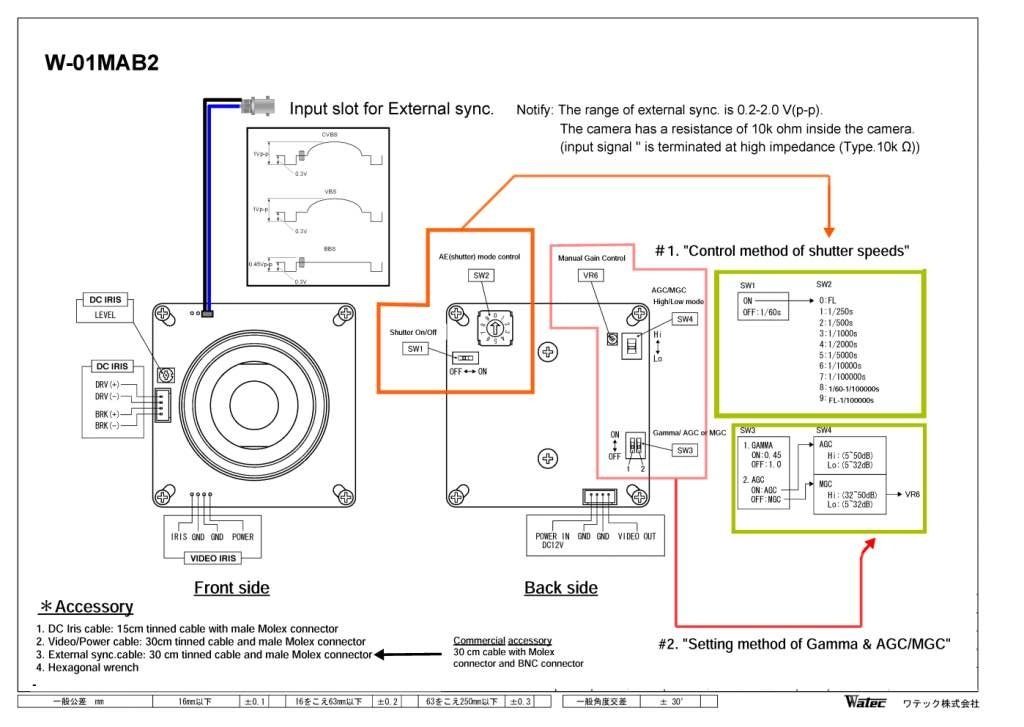

Using the image below as a reference, these are the settings I'm using at the moment.
P.s - switch 1 is not on the same place as in the pic below. It's on the right of the dial rather than below it.

Sw1- up
Sw2- position 9
VR6- untouched
Sw3-up, down
Sw4- down

Hope this helps.
Paul


User avatar
jdk1
Posts: 1973
Joined: 13 Aug 2012, 17:11
Location: west kingsdown kent

Re: Watec board camera settings ?

Post by jdk1 » 06 Mar 2013, 20:39

paulham wrote:Using the image below as a reference, these are the settings I'm using at the moment.
P.s - switch 1 is not on the same place as in the pic below. It's on the right of the dial rather than below it.

Sw1- up
Sw2- position 9
VR6- untouched
Sw3-up, down
Sw4- down

Hope this helps.
Paul

Nice one paul thanks :thumbup:

marcos58
Posts: 278
Joined: 25 Aug 2012, 03:33
Location: Manchester, ( by the sea, I wish lol) Lancashire

Re: Watec board camera settings ?

Post by marcos58 » 06 Mar 2013, 20:47

Thanks Paul ,

That gives me a base setting and then I can have a fiddle myself
AKA. A fisher price moment !

Marcos.

User avatar
paulham
Posts: 1192
Joined: 09 May 2012, 12:35
Location: Potters Bar, Hertfordshire

Re: Watec board camera settings ?

Post by paulham » 06 Mar 2013, 21:00

Yeah just use my settings to start off with, when I set it up I got eye shine off a mouse running around 25meters away down the garden.

Also I took it out the other week and was getting eye shine off rabbits and owls well over 100meters away.

Problem is that the camera and the screen I have aren't compatible, hopefully when my DVR arrives I can get some nice footage.

Paul

marcos58
Posts: 278
Joined: 25 Aug 2012, 03:33
Location: Manchester, ( by the sea, I wish lol) Lancashire

Re: Watec board camera settings ?

Post by marcos58 » 08 Mar 2013, 22:19

Hi All,

So I played in the back garden , returned the settings to the factory settings, ( I think !) post on the forum about
the best settings . Paulham replied, so took said Watec board camera into work, dark warehouse Marky light mk4
at 25meters, target sign on wall. I used Paulhams base settings to start and, wahay ! let there be light, 45 mins later
with lots of fiddling and lots of scribbled notes some very annoyed work mates (good job I am the boss)! returned
to my desk and read my notes, you guessed it , my best setting for this test are the original factory ( I think) settings ,
Dooh! I am using the Watec board camera as an add on for my scope, using a stock optics 16mm 1/3 lens as it
was from my original add on and the distance was only 25 meters but these settings seem to work for me. Next test
on the back of the Ags 4x6x56 swat on my .17hmr using my Markylight mk4 in the field, settings might be totally wrong/
different ,but haho! still do not understand all this Gamma Agc Mgc ?
To be continued.......
