Nightvision 800L add on
Nightvision 800L add on
Hi guys ‘ got the 800L & black sun ruby br671 .... 65 mm irfor Christmas,only thing is I can’t see a lot through it. Am I using the right ir ??.my scope is a Hawke endurance.tried it out twice, 1st night saw a little but not very bright. 2nd night couldn’t see anything only lights of houses etc at really long distance. At around 100yds nothing. Either too dark r too bright.only getting into nightvision, no very little about it. Appreciate any help lads.brendy
-
some bloke
- NON EMMET
- Posts: 9501
- Joined: 27 Jan 2012, 16:14
- Location: Leicester mostly but DEEP S.West sometimes
Re: Nightvision 800L add on
I'm assuming your scope is a side focus model? Sounds to me like you may have the torch zoomed too wide - or aimed too low in the viewing screen.
A common avoidable mistake is made by using an economy torch mount that doesn't let you aim and keep a torch to its optimum position.
Another common mistake is to use excessive illumination which the camera then blocks out - removing its distance viewing ability.
I use a monitor type rig but would do the same if I could get on with a near eye device.
I initially set my scope up on minimum mag with my integrated fixed aim torch shimmed high on its tightest beam and maximum power. You would aim your squared 'radiator' torch beam just above the centre cross hair (Lighting the distance) then lock the torch in its mount. If you bought a plastic figure of 8 type mount then you can't do that without a lot of peeing about every time you fit it. Zoom the torch wider to defocus the radiator effect which also brings a little light into more of the foreground where you don't need very much light.. and the camera won't shutter it out.
Once the torch beam is set up you will observe a progressively darker patch around the outer image - now zoom the scope into the mag you prefer to shoot at which will reduce or completely conceal the darker perimiter. Reduce the power of the illuminator when you don't need it on full power.

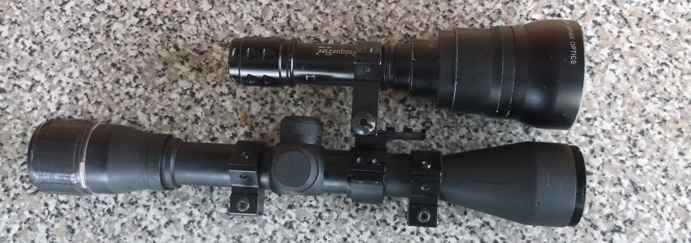

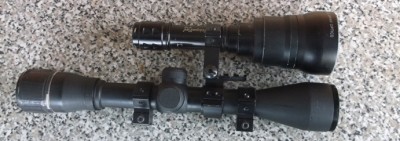

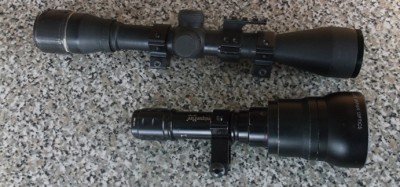

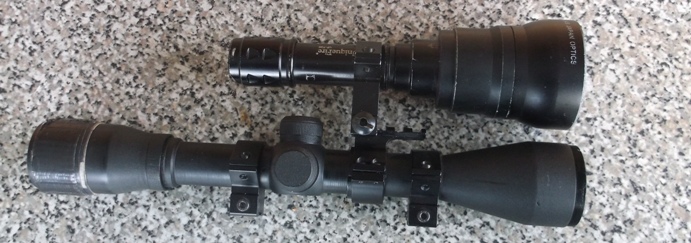

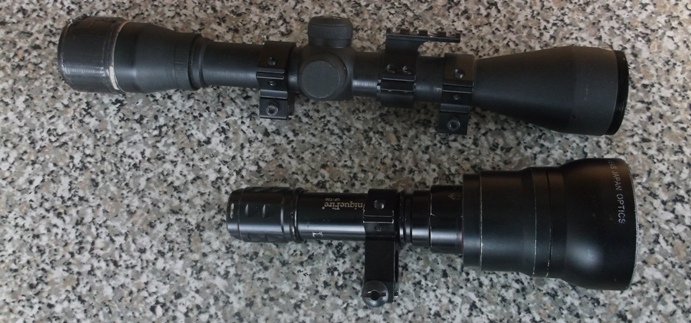

This type of 'scope come torch adaptor' allows you to shim the torch higher if you mount the torch in a weaver scope mount.
https://www.ebay.co.uk/itm/1-25mm-30mm- ... 3570304513
Use with one of these
https://www.ebay.co.uk/itm/High-profile ... 1330844436
This method of torch mounting only has a small unobtrusive adaptor added to the scope for daylight use, but a lamping torch or illuminator can be fitted to it in seconds which correctly aims it every time.
A common avoidable mistake is made by using an economy torch mount that doesn't let you aim and keep a torch to its optimum position.
Another common mistake is to use excessive illumination which the camera then blocks out - removing its distance viewing ability.
I use a monitor type rig but would do the same if I could get on with a near eye device.
I initially set my scope up on minimum mag with my integrated fixed aim torch shimmed high on its tightest beam and maximum power. You would aim your squared 'radiator' torch beam just above the centre cross hair (Lighting the distance) then lock the torch in its mount. If you bought a plastic figure of 8 type mount then you can't do that without a lot of peeing about every time you fit it. Zoom the torch wider to defocus the radiator effect which also brings a little light into more of the foreground where you don't need very much light.. and the camera won't shutter it out.
Once the torch beam is set up you will observe a progressively darker patch around the outer image - now zoom the scope into the mag you prefer to shoot at which will reduce or completely conceal the darker perimiter. Reduce the power of the illuminator when you don't need it on full power.
This type of 'scope come torch adaptor' allows you to shim the torch higher if you mount the torch in a weaver scope mount.
https://www.ebay.co.uk/itm/1-25mm-30mm- ... 3570304513
Use with one of these
https://www.ebay.co.uk/itm/High-profile ... 1330844436
This method of torch mounting only has a small unobtrusive adaptor added to the scope for daylight use, but a lamping torch or illuminator can be fitted to it in seconds which correctly aims it every time.
- Attachments
-
-
Re: Nightvision 800L add on
Cheers some bloke' thanks for ur advice regards the ir. Went out to night & did a bit of fiddling around with the ir & scope & after a half an hour r so result was brilliant. Really do appreciate u taking time to give me ur advice .im only getting into night vision & have to say between the forum & guys like yourself it really does make life easier .so far so good, start shooting tomorrow night.Brilliant scope so far Clive , Ta
